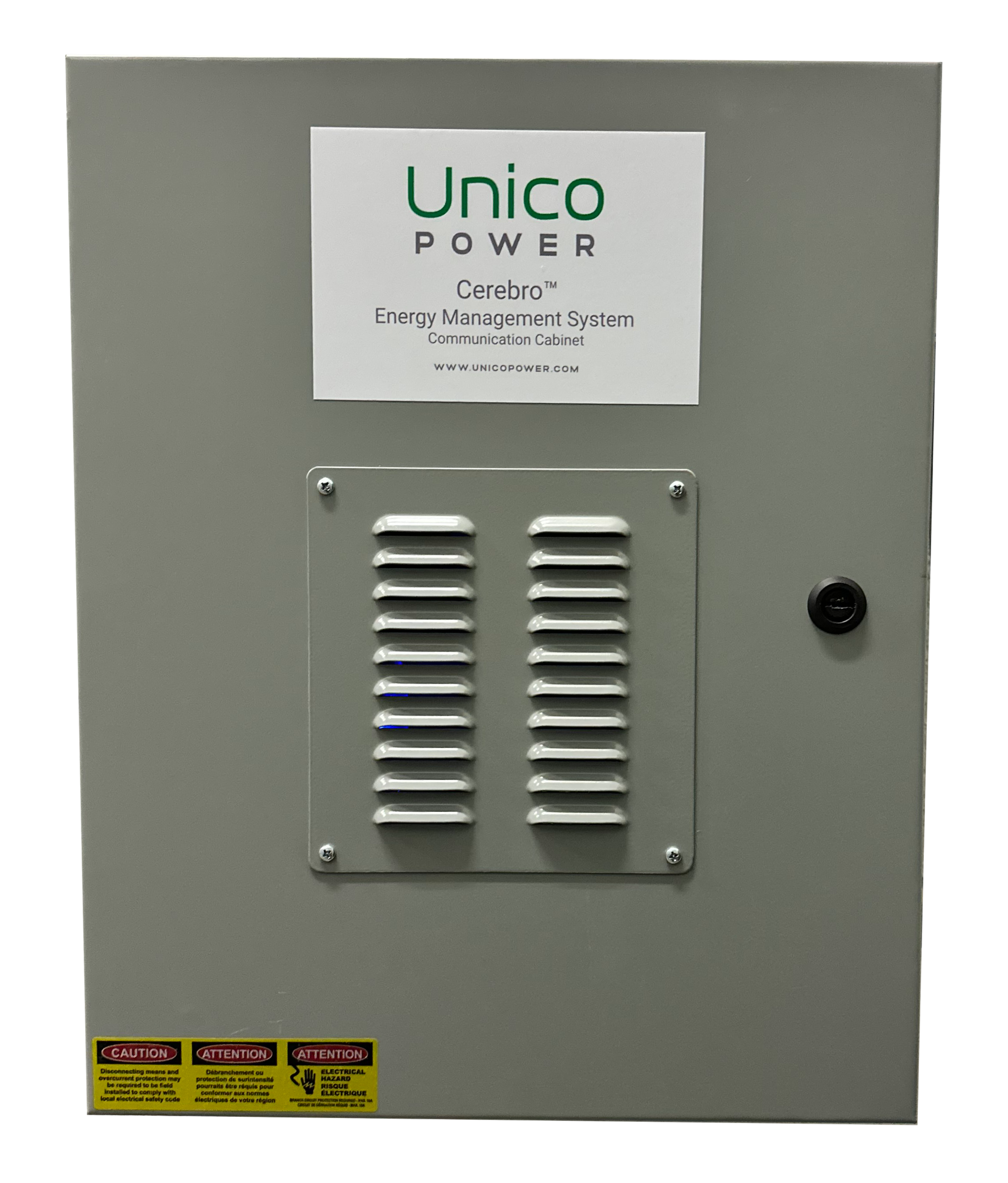

Cerebro™ Energy Management System
Trusted by thousands of users since 2019, Cerebro Energy Management System (EMS) is the backbone of Unico Power's commitment to provding customers with an excellent EV Charging experience.
Cerebro EMS precisely measures the total energy use of a building in real-time. It has total control over all EV Chargers in the building, keeping demand low - saving our customers tousands each year.
Enclosure Type | NEMA 1 locking cover and DIN Rail Mounted equipment | Meter | AcuRev 1312 Phase 60 Hz, Current Transformers up to 5,000 Amps |
Cabinet Supply Voltage | 120 VAC 60 Hz | Power over Ethernet | Up to 8 PoE Outputs. |
Surge Protection | Leviton 47605-ACS J-Box Surge Protective Kit, Single AC Power Module | Connections | 120 VAC or 208 VAC input. Cat 5e or 6 Ethernet with Internet connection. |
Cabinet Dimensions (W X H X D) | 20” x 16” x 6” 38.9 cm x 39.7cm x 9.4 cm | System Operating Temperature | Max 50⁰ C Ambient |
Cabinet Weight (Loaded) | 10.9 kg (24 lbs) | Ventilation | Passive Cooling with Vented Cover |
Router | TP Link | Mounting | Wall Mounted |
Controller | Gigahertz-speed, high-capacity Maestro™ Controller. Part #202001A | Safety | UL/CSA Listed |
Options | Additional EKM Omnimeter II UL v.3 Meter(s), Additional Faros |
