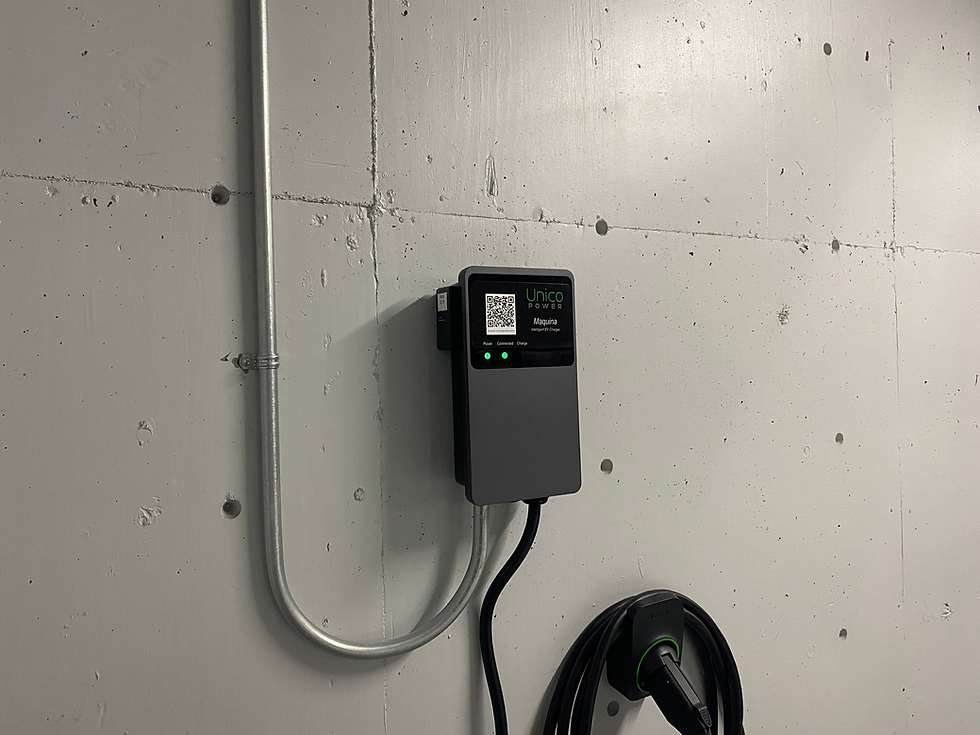

Maquina™ 40A/50A Intelligent EV Charger

  • Description

    Our Most Powerful Charger Yet.
    Wake up to full battery every morning while keeping building costs low.  Experience piece of mind with durable construction and NEMA 4 rating.

    Where does the intelligence come in?
    Our EV Chargers have full Wi-Fi and radio connectivity, but not for superficial reasons.  The charging level is fully controllable and is automatically adjusted to make sure the building doesn't consume too much electricity, saving you thousands each year!

Available as a part of our complete solution for multi-unit buildings.


Maquina™ Intelligent EVSE Specifications

Enclosure Type
NEMA Type 4
Power Output
8.3 kW (208 VAC, 40A)-, 9.6kW (240 VAC, 40A)
Supply Voltage
177-270 VAC 60 Hz
Operating Temperature
-40 to +55⁰ C Ambient
Input/Output Current
40A (Standard), 50A Software Settable (16-50A)
Ventilation
Not required. Not for use with electric vehicles requiring ventilation
Failsafe Current
System settable (0-8A).
Mounting
Wall, Pedestal, Ceiling
Weight
5.9kg (13 lbs) with standard cable
Communication
OCCP 1.6j, LoRa Long Range 915 MHz, 802.11 b,g,n (WiFi)
Dimensions (W X H X D)
18.7cm X 33.8cm X 8.5 7 in X 13.3 in X 3 in
Safety and Certifications
UL/CSA Listed (UL 2231, UL 2251), OCP,OTP, UTP
Charging Connector
SAE J1772 Type 1
GFCI
20 mA CCID20,
Charging Cable
25 Feet (7.5m)  3C10AWG + 1C18AWG 600V Type EVE
Options
Supply cable 30cm with NEMA 14-50 Plug End or hardwired
Country of Origin
Made in Vietnam, Tariff Free under CPTPP
